Overview
Features
Unique design, high quality components, promised quality & competitive price
Convenient Installation
A step ahead in monitoring and controls
Air filter System
Optimized screw hosts
High degree of protection design
Strong environmental adaptability
Oil filter system
Easy operation and complete protection functions
Details
| Weight | 162 kg |
|---|---|
| Dimensions | 880 × 600 × 820 cm |

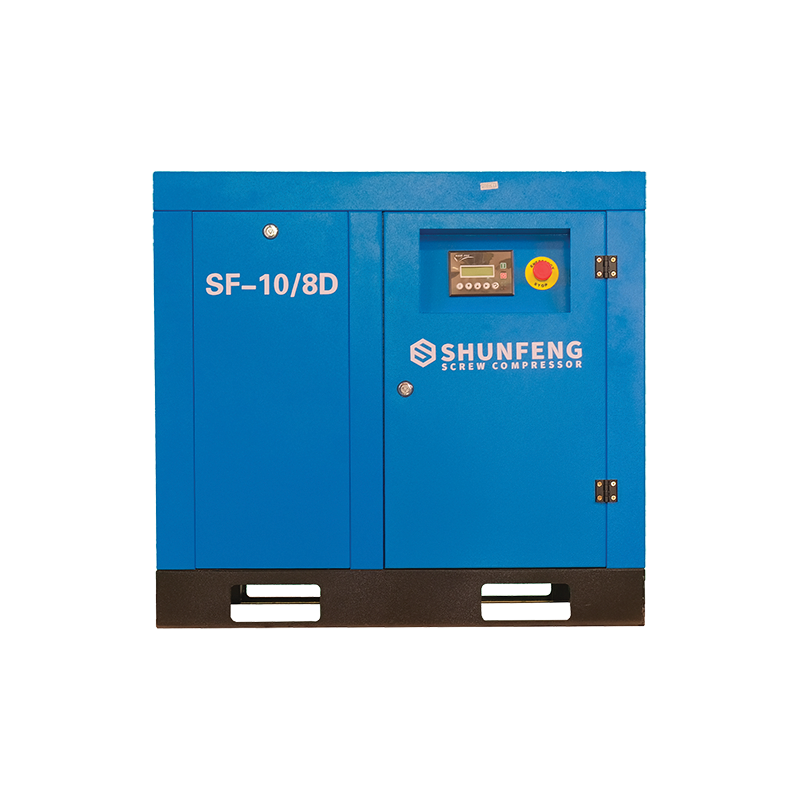

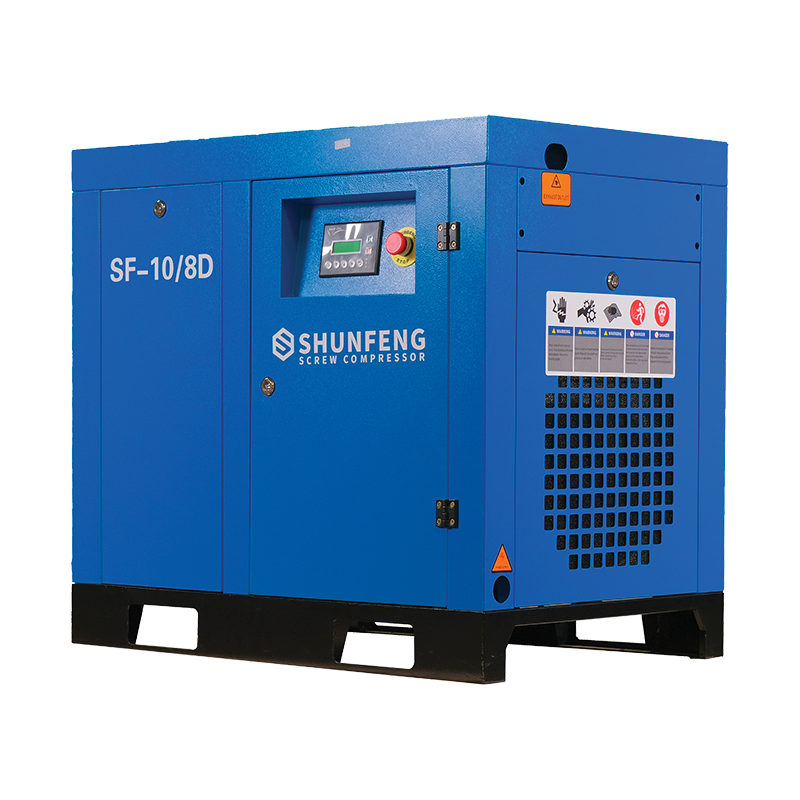

| Model | SF-10 |
| Air Delivery | 1/0.8 (m³/min) |
| Discharge Pressure | 0.68/1.0 Mpa |
| ISO 46 Lubricating Oil Capacity | 8 L |
| Noise dB | 66±2A |
| Driving Mode | Direct driven |
| Power | 7.5/10 kw/hp |
| Startup Mode | Direct start |
| Outlet Pipe Diameter | R½ |
